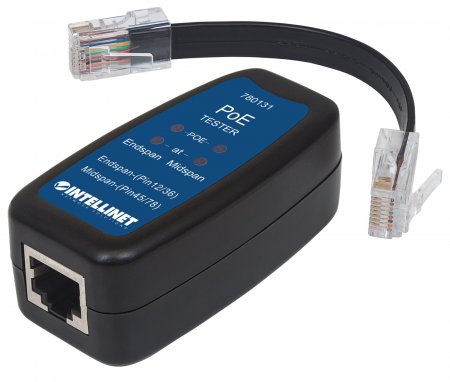

Intellinet PoE Plus Tester 780131 Power over internet Plus

Product Overview:
The Intellinet PoE+ Tester is a Power over Ethernet detector that confirms 802.3af and 802.3at connections. It also identifies the existence and type of Power Sourcing Equipment (either Endspan or Midspan). This tester is a simple plug-and-play tool that allows the installer to correctly identify PoE or PoE+ without the risk of damaging expensive equipment.

Features:
• Detects IEEE802.3af and IEEE802.3at
• Tests for both Endspan and Midspan power
• Compact design

Specifications:
• Product Code: 780131
• Description: Intellinet PoE+ Tester - Power over Ethernet Plus

General
• Detection of IEEE802.3af and IEEE802.3at
• Detection of PSE (power sourcing equipment) type
• Plug and Play
• Simple and effective

Dimensions
• 27.94 (L) x 33.02 (W) x 68.58 (H) [mm]
o (L) x 1.3 (W) x 2.7 (H) [in]

Package Contents
• PoE+ Tester
• 1 x 10 cm (3.94 in.) RJ45 to RJ45 cable
• Instruction manual
